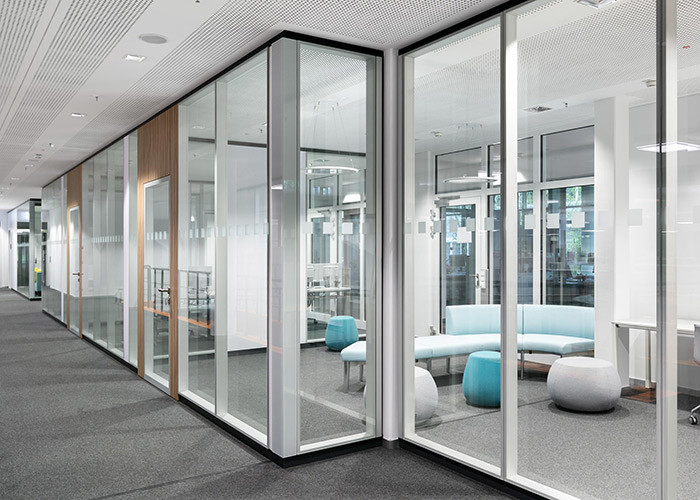

Double-Glass Partition System Specifications Advanced Acoustics High Configuration
Double-Glass Partition System Specifications Advanced Acoustics High Configuration
Double-Glass Partition System Specifications Advanced Acoustics High Configuration Double-Glass Partition System Specifications Advanced Acoustics High Configuration

Double-Glass Partition System Specifications Advanced Acoustics High Configuration

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Glawall
Сертификация: SGS, ISO 9001,UL, CE
Номер модели: Алюминиевая перегородка с двойным стеклом
Оплата и доставка Условия:
Количество мин заказа: 10 квадратных метров
Цена: US$80.00 10 - 99 square meters
Упаковывая детали: Деревянный пакет
Время доставки: 2-3 недели
Условия оплаты: L/C, D/A, D/P, T/T, Western Union
Поставка способности: 3000 квадратных метров в месяц
Контакт

Подробная информация
Материал: Алюминиевая рама + стеклянная панель Прозрачность: Проще.
Настраиваемый: Размер, аксессуары Конкурентоспособная цена: Да, да.
Толщина стекла: 5 мм, 8 мм, 10 мм, 12 мм, сплошной Тип стекла: прочное закаленное стекло
Материал рамы: Алюминий Преимущество: Конкурентоспособная цена, хорошее обслуживание, высокий профессионализм, гарантия качества

Характер продукции

Double-Glass Partition System Specifications Advanced Acoustics High Configuration 0


Glawall Double-Glass Partition System – Technical Specifications
Premium Architectural Glass Walls for Modern Spaces
Designed for offices, conference rooms, and high-traffic areas requiring transparency + superior acoustics.


1. Core Specifications


Parameter Specification
Glass Construction Double-layer tempered safety glass (5+5mm or 12+12mm)
Wall Thickness 79mm / 90mm / 108mm systems available
Max Height <3,200mm (custom heights with structural reinforcement)
Frame Profile Slim 35mm/40mm aluminum or stainless steel
Glass Connection Near-invisible joints: acrylic tape / metal strips / crystal beading
Acoustic Performance Rw 40-48dB (upgradable to 50dB with laminated glass)
Sound Absorption >0.9 NRC (optional perforated metal or 3D fiber panels)


Double-Glass Partition System Specifications Advanced Acoustics High Configuration 1


2. Key Features


✔ Seamless Aesthetic Frameless glass-to-glass connections (1-3mm visible joint)
Ultra-slim 35-40mm profiles for minimalist elegance
✔ Advanced Acoustics 12+12mm glass + air gap for STC 48 performance
Optional sound-absorbing cores (3D polyester fiber)
✔ Privacy & Light Control Integrated 16mm/25mm aluminum louvers (manual or motorized)
Switchable PDLC glass (instant privacy)
✔ Structural Innovation Height-adjustable frames (±15mm tolerance compensation)
Seismic-compliant designs available


Double-Glass Partition System Specifications Advanced Acoustics High Configuration 2


3. Configuration Options

A. System Types Model Best For 79mm Frame (5+5mm) Budget-friendly divisions
108mm Panoramic (12+12mm) Premium executive offices
90mm Acoustic (5+5mm) Meeting rooms & call centers
B. Door Solutions Glass pivot/sliding doors (frameless or aluminum-framed)
Solid wood/steel doors (fire-rated options)
Hybrid glass+panel designs



4. Performance Advantages

  • Thermal Efficiency – Low-E coatings reduce HVAC loads
  • Safety – Tempered glass breaks safely into blunt pieces
  • Hygiene – Non-porous, hospital-grade cleanability
  • Reconfigurable – Demountable for space changes


Double-Glass Partition System Specifications Advanced Acoustics High Configuration 3


5. Ideal Applications


Corporate HQs (open-plan offices, boardrooms)
Healthcare (private consultation rooms)
Luxury retail (display partitions)
Education (quiet study zones)
Technical Comparison Glass Thickness
Glass Type Weight (kg/m²) Soundproofing Best Use
5+5mm 24 STC 40 General office spaces
12+12mm 56 STC 48 High-noise environments



Why Professionals Choose This System?


  • Precision German track systems (300,000+ cycle durability)
  • BIM-compatible for seamless project integration
  • 15-year structural warranty
  • "Where architectural vision meets acoustic science."


Double-Glass Partition System Specifications Advanced Acoustics High Configuration 4


The beautiful design is particularly suitable for offices, corridors, around the core tube, conference rooms, exhibition halls and other areas.


Basic parameters:
Panel thickness: double-layer 12+12mm, 5+5mm tempered safety glass;
Wall thickness 3mm
Glass wall height <3200mm
Frame profile height 40mm, 35mm;
Glass connection transparent acrylic tape, metal ultra-narrow strip, crystal bead;
Sound insulation parameters 40-48dB;
Sound absorption coefficient >0.9 (perforated metal sound-absorbing panels, 3D polyester fiber sound-absorbing panels can be configured)
Optional models 79mm frame double glass 5+5mm glass, 79mm frame panoramic double glass 12+12mm glass, 90mm frame double glass 5+5mm glass, 108mm frame single glass 5+5mm glass, 108mm frame double glass panoramic 12+12mm glass
Door type single glass door, framed single and double glass door, wood grain/solid color steel door (multiple color cards available), double glass shutter glass door, double glass hidden frame door, wooden door, sliding door.
Product features

Fully transparent double-layer glass structure, frameless connection between glass panels, fun and simple lines, 3mm frame, height adjustment function, extraordinary sound insulation performance to meet the ultimate quiet requirements.


Double-Glass Partition System Specifications Advanced Acoustics High Configuration 5


[Contact our engineers for custom configurations]

Glawall – Redefining spatial boundaries with light and innovation.


Double-Glass Partition System Specifications Advanced Acoustics High Configuration 6
